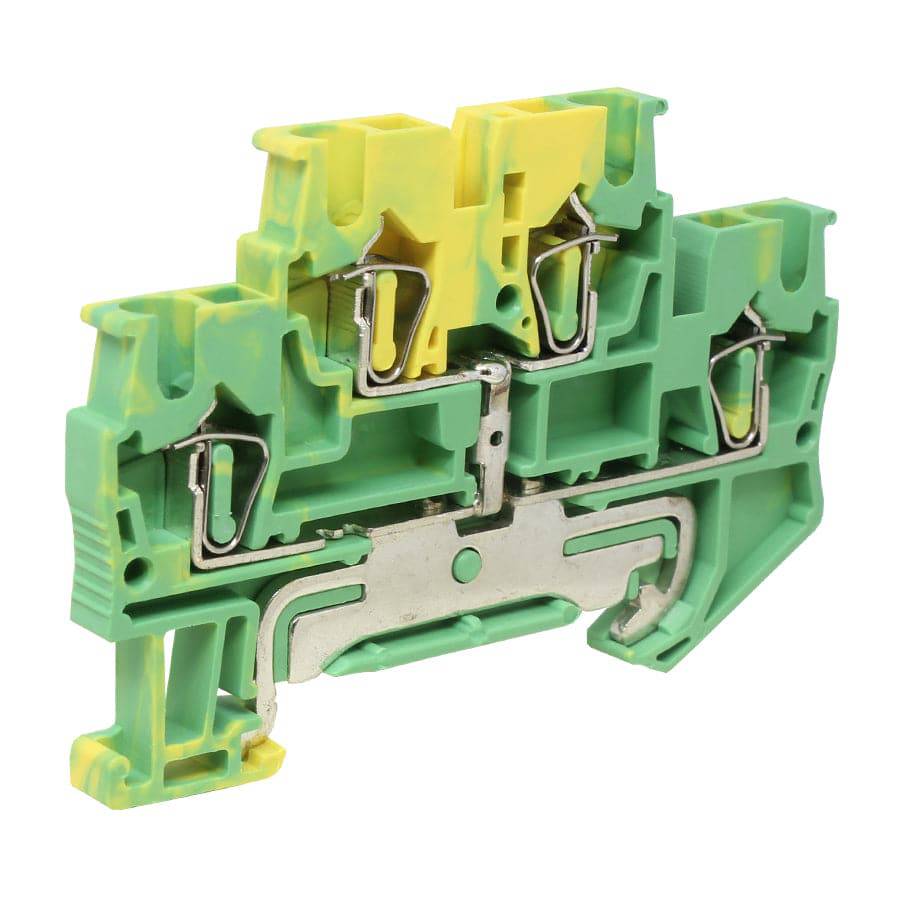

UJ5-2.5/2-2JD - 26 to 14 AWG, Spring Cage Terminal Block, UL Approved, Yellow-Green
SPRING CAGE TERMINAL BLOCK
Introducing the UJ5-2.5/2-2JD, the UL approved terminal block with spring cage technology for secure and efficient wire connections. It's perfect for a variety of applications and can accommodate 26 to 14 AWG wires.
TECHNICAL DATA:
| Wire Range (Stranded): | 26 to 14 AWG (0.14mm to 2.50mm) |
| Wire Range (Solid): | 26 to 14 AWG (0.14mm to 2.50mm) |
| Stripping Length: | 0.39" (10mm) |
| Connection Method: | Spring-Cage Connection |
| Operating Temperature: | -40°F to +221°F (-40°C to +105°C) |
| Ambient Temperature: | -77°F to +140°F (-25°C to +60°C) |
| Relative Humidity: | 30% to 90% |
| Connection Standard: | IEC 60947-7-1 |
| Width: | 2.66" (67.5mm) |
| Thickness: | 0.17" (4.2mm) |
| Height: | 1.80" (45.8mm) |
| Number of Connections: | 4 |
| Rated Cross Section (mm): | 1.5 |
| Color: | Yellow-Green |
| Insulation Material: | PA (Nylon) |
| Flame Retardant Grade: | V0 (UL94) |
| Temperature of Insulation Material: | -40°F to +257°F (-40°C to +125°C) |
| Wire Feed: | Above the terminal |
COMPATIBLE ACCESSORIES:
Items with links are currently available for purchase. E-mail us today for availability of non-stock items.
| Mounting Rail: | TH35-7.5 & TH35-15 |
| End Cover: | UUJ5-2.5/2-2JD |
| Marker Carrier: | UJ55-2 |
| Marker Carrier: | UJ5 5-2/S |
| Marker Strip (Blank): | UBFM5(Blank) |
| Marker Strip (Horizontal): | UBFM5(Horizontal) |
| Marker Strip (Vertical): | UBFM5(Vertical) |
| Screwdriver: | YB0.6x3.5 |
MOUNTING RAIL TYPE:
DOCUMENT FILE:
Original: $5.20
-70%$5.20
$1.56Product Information
