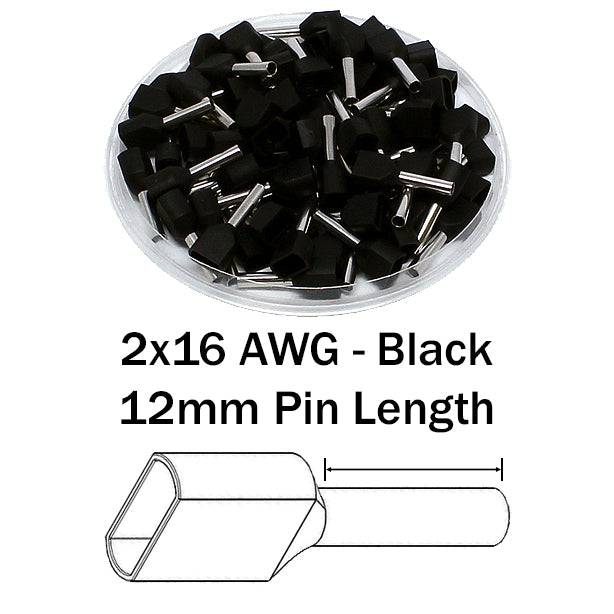

TD15012 - 16 AWG Twin Wire Ferrules, 12mm Pin, Black, 500 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 2x16 AWG |
| Color: | Black |
| E: | 3.6mm (0.14") |
| D1: | 2.2mm (0.09") |
| D2: | 6.2mm (0.24") |
| L1: | 19.5mm (0.77") |
| L2: | 12.0mm (0.47") |
| S1: | 0.3mm (0.01") |
| Max Electrical Rating: | 105oC (221oF) - 600 Volts |
| Max Electrical Current: | 18A |
| Material: | Tin-Plated Copper |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
ABB: 30456406
Altech Corp: 2797.0 - FTD1612
American Electrical: 13121015
Automation Direct: BM-00657 V3AE000738
Eclipse: 701-120
Elecdirect: FER2-16-12D
Greenlee: 872/12
McMaster-Carr: 9703K28 & 9703K17
Panduit: FTD78-12-D
Phoenix Contact: 3200991
SPC Technology: SPC4568 84N2102
Thomas Betts: F8007
Tyco AMP: 966 144-7
WAGO: 216-543 51018071
Weidmuller: 9004750000 9017480000
ZF: V3AE0738 V3AE000738
Documents
Click to view product spec sheet:
Videos
Check out our YouTube channel!
