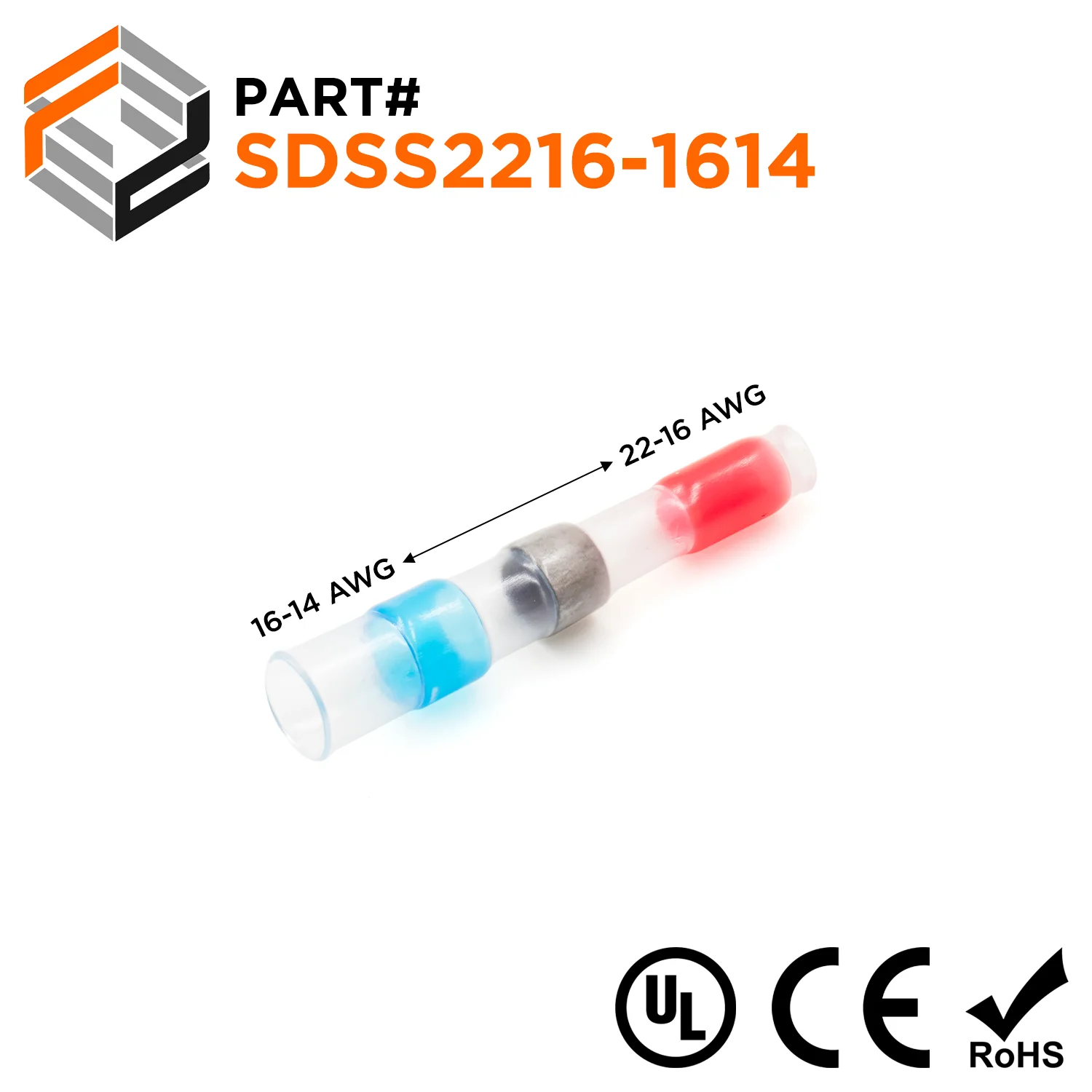

SDSS2216-1614 - 22-16 to 16-14 AWG Heat Shrinkable Step-Down Solder Sleeve, Red/Blue, 25 Pieces

Product image 1
1 / 2

SDSS2216-1614 - 22-16 to 16-14 AWG Heat Shrinkable Step-Down Solder Sleeve, Red/Blue, 25 Pieces

Heat shrinkable step-down solder sleeves are a highly effective solution for ensuring strong, secure, and reliable electrical connections, especially when working with varying wire sizes and requiring professional-grade results. They provide sealed protection against environmental extremities as well as insulate, seal and protect joints from physical abuse, abrasion, water, salt, and other corrosive elements.

Dimensions & Features:

Wire Size: 22-16 to 16-14 AWG
Color: Red / Blue
L: 40mm ± 1.5 (1.57")
A (Min): 2.7mm (0.11")
B (Min): 1.8mm (0.07")
B (Max): 4.5mm (0.18")
C (Min): 1.2mm (0.05")
C (Max): 4.5mm (0.18")
Insulation Material: Polyolefin
Temperature Rating: -55°C to 125°C


Product Drawing:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:


Videos

Check out our YouTube channel!


$12.54
SDSS2216-1614 - 22-16 to 16-14 AWG Heat Shrinkable Step-Down Solder Sleeve, Red/Blue, 25 Pieces—
$12.54

Product Information

Shipping & Returns

Description

Heat shrinkable step-down solder sleeves are a highly effective solution for ensuring strong, secure, and reliable electrical connections, especially when working with varying wire sizes and requiring professional-grade results. They provide sealed protection against environmental extremities as well as insulate, seal and protect joints from physical abuse, abrasion, water, salt, and other corrosive elements.

Dimensions & Features:

Wire Size: 22-16 to 16-14 AWG
Color: Red / Blue
L: 40mm ± 1.5 (1.57")
A (Min): 2.7mm (0.11")
B (Min): 1.8mm (0.07")
B (Max): 4.5mm (0.18")
C (Min): 1.2mm (0.05")
C (Max): 4.5mm (0.18")
Insulation Material: Polyolefin
Temperature Rating: -55°C to 125°C


Product Drawing:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:


Videos

Check out our YouTube channel!
