SD05008 - 22 AWG Strips of Insulated Wire Ferrules, 8mm Pin, White, 500 Pieces
INSULATED WIRE FERRULES - STRIPS
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

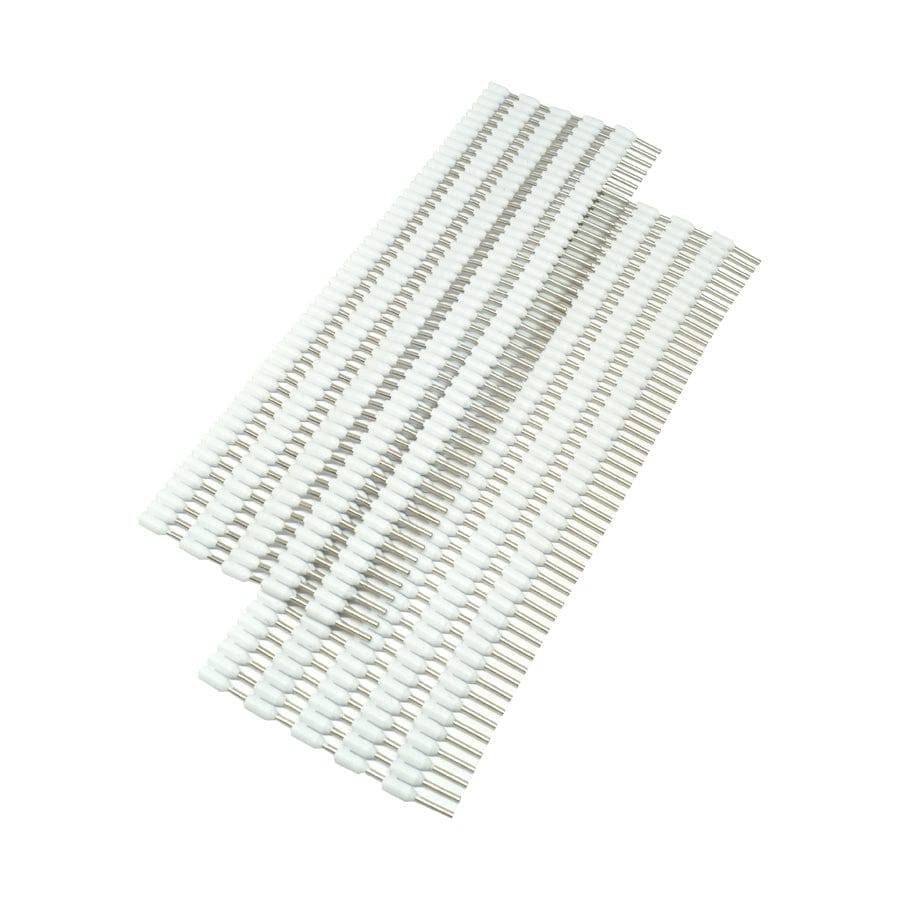

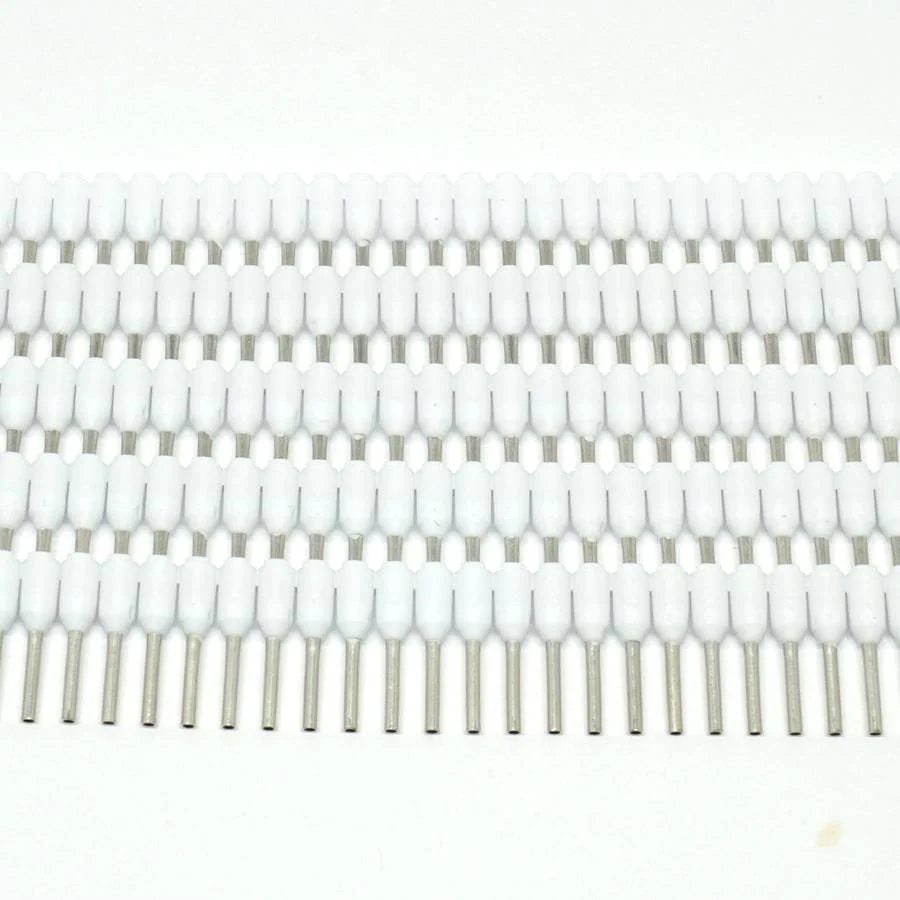

These ferrules come in a package of ten strips of 50 pieces. They are a universal size that can be loaded into the automatic stripping tools.
DIMENSIONS & FEATURES:
| Wire Size: | 22 AWG (0.50mm2) |
| Color: | White |
| Pin Length: | 8mm (0.31") |
| Material: | Tin Plated Copper & Polypropylene |
| L1: | 14.0mm (0.551") |
| L2: | 8.0mm (0.315") |
| D: | 1.3mm (0.051") |
| D1: | 1.0mm (0.039") |
| D2: | 2.6mm (0.102") |
| CE Certfied: | Yes |
| RoHS Compliant: | Yes |
| Max Temperature Rating: | 221°F (105°C) |
| Max Electrical Rating: | 600 Volts |
| Max Electrical Current: | 12 AMP |
DRAWING:
Cross References
ABB: XUSD01830 & 30445400
Altech Corp: 2864.0 FID2006
Crimp Supply: 13A14001
Miromar: 120050/8
Elecdirect: FER-22-6D
Greenlee: 469/6
McMaster-Carr: 7950K81 & 7950K11 & 7950K12
Panduit: FSD75-8-D FSF75-8-D
Phoenix Contact: 3200687
SPC Technology: SPC4504 84N2038
Thomas Betts: F2020
Tyco AMP: 966 067-1
WAGO: 216-221
Miromar: 120050/8
American Electrical: 1181050
Weidmuller: 9019000000
ZF: V3AE0037
Documents
Click to view data sheet
