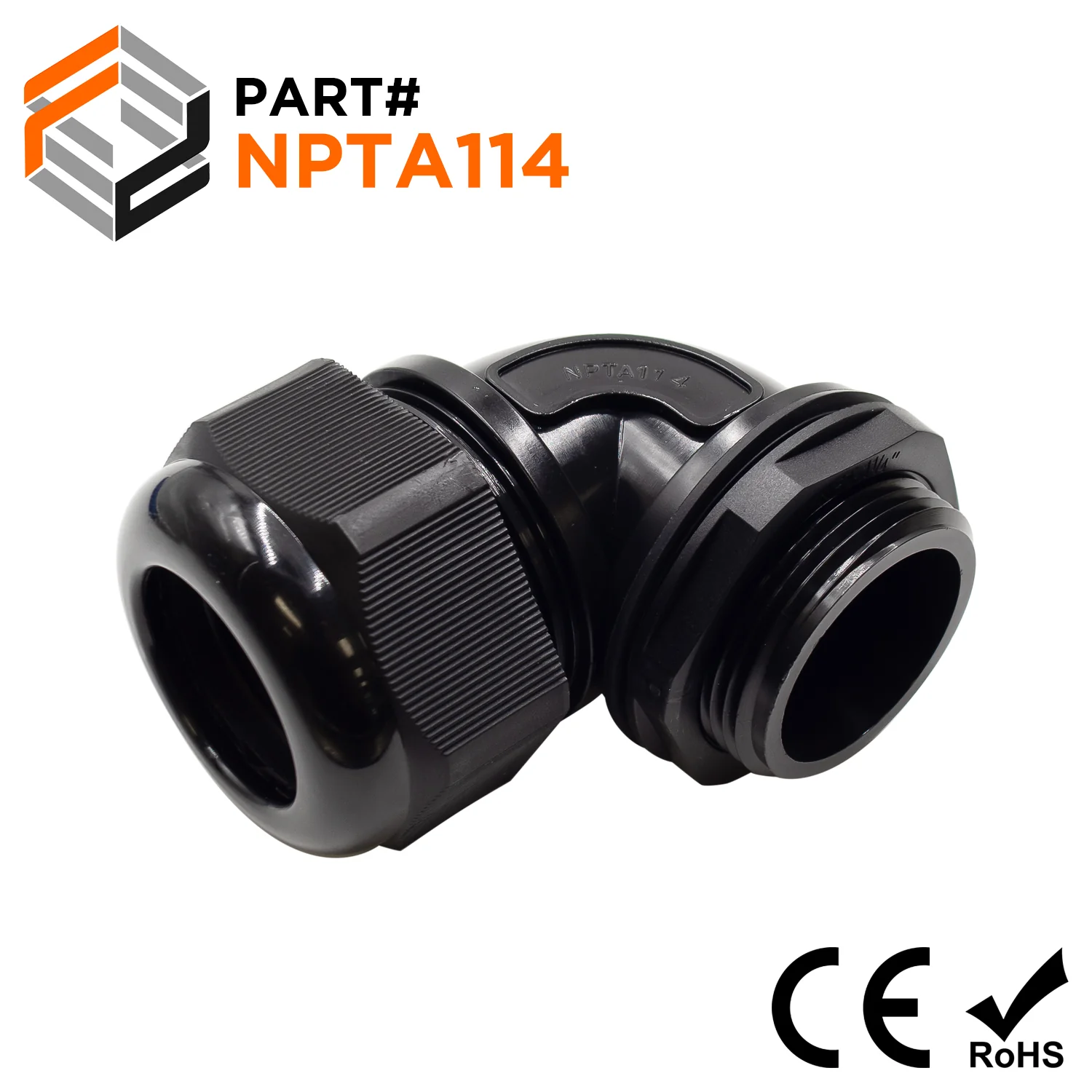

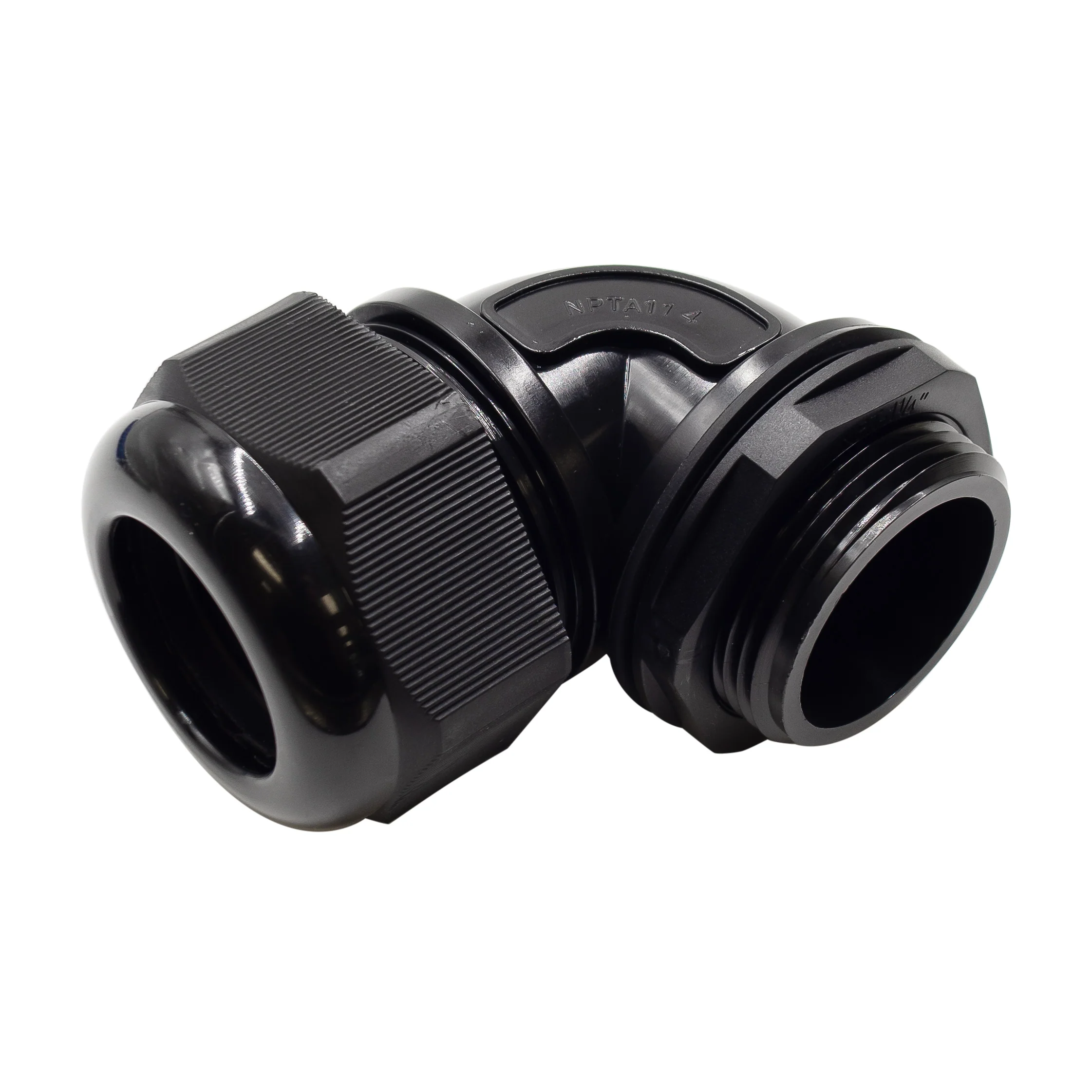

NPTA114 - 1-1/4" NPT Thread Nylon Cable Gland, Black, Right Angle, IP68, Range: 22-29mm, 1 Piece

NYLON CABLE GLANDS: NPT THREAD

NPT (National Pipe Thread) cable glands are useful when creating water-tight pass-throughs for cables. They protect and secure cables through their internal seals. Ferrules Direct offers a wide range of NPT sizes in a variety of materials and colors. These glands are easy to use and built to handle tough conditions.

1-1/4" NPT Thread Right Angle Nylon Cable Gland

DIMENSIONS & FEATURES:

Thread Size: NPT 1 1/4"
Cable Range: 22-29mm
Color: Black
C1: 41.9mm (1.65")
C2: 41.2mm (1.62")
D2: 31.6mm (1.24")
B1: 29.3mm (1.53")
H: 63.0mm (2.08")
L: 85.0mm (3.36")
L1: 18.8mm (0.74")
L2: 16.3mm (0.64")
L3: 31.0mm (1.22")
Material: UL Approved 94UV-2 - Halogen Free
Ingress Protection: IP68
Flammability: PA (Nylon), UL 94
Hermetic Seal: NBR (Nitrile Rubber)
O-Ring: EPDM
Working Temperature: -40°C to 105°C
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes


DRAWING:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:



$7.56
