MSRVB5-3753 - 12 to 10 AWG PVC Vinyl Insulated Multi-Stud Ring Terminals, Stud Sizes: #6, #8, #10, 100 Pieces

Product image 1

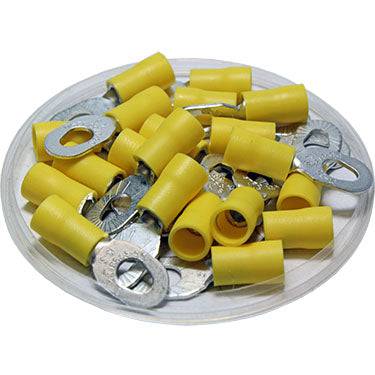

MSRVB5-3753 - 12 to 10 AWG PVC Vinyl Insulated Multi-Stud Ring Terminals, Stud Sizes: #6, #8, #10, 100 Pieces

VINYL (PVC) INSULATED MULTI-STUD RING TERMINALS

Multi-Stud Ring Terminals are use to mate, connect, or terminate a single wire while simultaneously allowing it to connect to a screw or stud type electrical connection. The oblong shape of these particular terminals allows the ring to fit a variety of stud sizes.

Dimensions & Features:

Wire Size: 12-10 AWG
T: 1mm (0.04")
L: 29.3mm (1.15")
F: 8.9mm (0.35")
E: 13mm (0.51")
W: 9.9mm (0.39")
D 6.4mm (0.25")
D1: 3.4mm (0.07")
D2: 3.7mm - 4.3mm - 5.3mm (0.15" - 0.17" - 0.21")
Stud Size: #6 - #8 - #10
Color: Yellow
Terminal Material: Tin-Plated Copper
Insulation Material: Vinyl
Seam: Brazed
Max Electrical Current: 50AMP
Max Electrical Rating: 600 Volts (105oC)
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes



Technical Drawing:


Cross References

Cross References:

3M: MV10-610RK
McMaster-Carr: 8010K15

Documents

Click to view product spec sheet:

Videos

Click here to check out our YouTube channel:

$26.34
MSRVB5-3753 - 12 to 10 AWG PVC Vinyl Insulated Multi-Stud Ring Terminals, Stud Sizes: #6, #8, #10, 100 Pieces—
$26.34

Product Information

Shipping & Returns

Description

VINYL (PVC) INSULATED MULTI-STUD RING TERMINALS

Multi-Stud Ring Terminals are use to mate, connect, or terminate a single wire while simultaneously allowing it to connect to a screw or stud type electrical connection. The oblong shape of these particular terminals allows the ring to fit a variety of stud sizes.

Dimensions & Features:

Wire Size: 12-10 AWG
T: 1mm (0.04")
L: 29.3mm (1.15")
F: 8.9mm (0.35")
E: 13mm (0.51")
W: 9.9mm (0.39")
D 6.4mm (0.25")
D1: 3.4mm (0.07")
D2: 3.7mm - 4.3mm - 5.3mm (0.15" - 0.17" - 0.21")
Stud Size: #6 - #8 - #10
Color: Yellow
Terminal Material: Tin-Plated Copper
Insulation Material: Vinyl
Seam: Brazed
Max Electrical Current: 50AMP
Max Electrical Rating: 600 Volts (105oC)
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes



Technical Drawing:


Cross References

Cross References:

3M: MV10-610RK
McMaster-Carr: 8010K15

Documents

Click to view product spec sheet:

Videos

Click here to check out our YouTube channel:
