MDFNYD1-187(8) - 22 to 16 AWG Nylon Insulated Quick Disconnects, Male, Fully Insulated, 100 Pieces

Product image 1

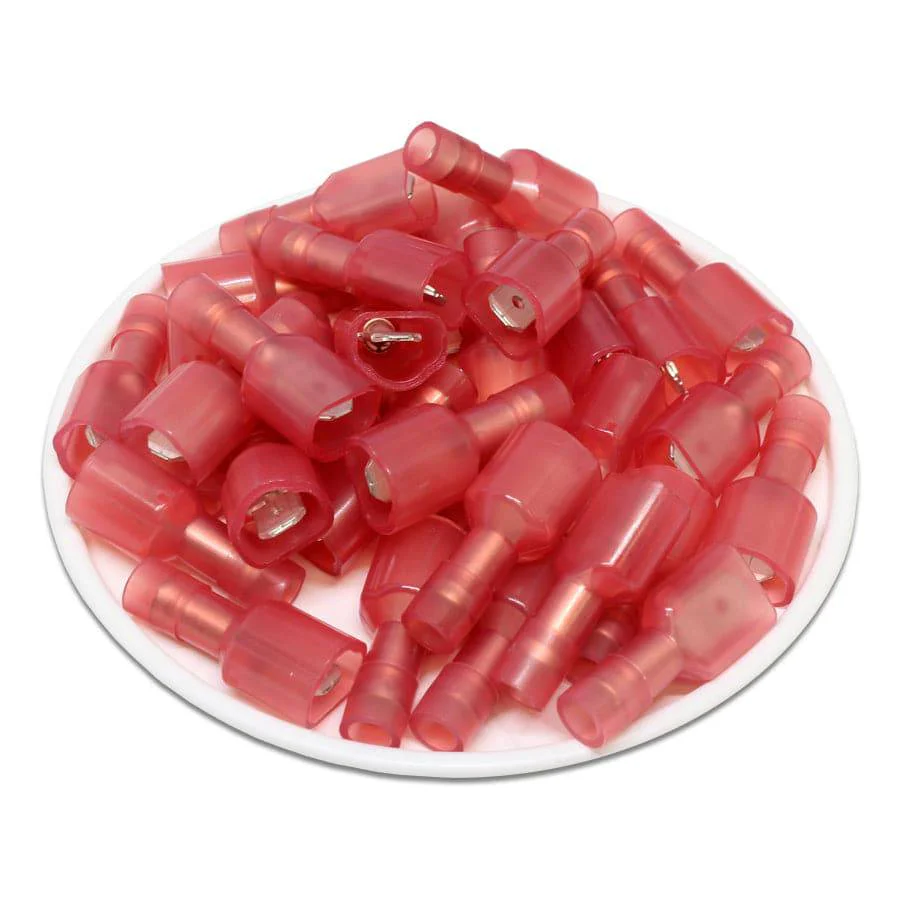

MDFNYD1-187(8) - 22 to 16 AWG Nylon Insulated Quick Disconnects, Male, Fully Insulated, 100 Pieces

  • Made of tin plated brass and insulated with Vinyl.
  • Create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation
  • Double Crimp copper sleeve provides maximum electrical conductivity, strengthens barrel and protects wire against stress and high vibration
  • Tolerances may vary from item to item. Please consult the product's Technical Drawing.


    • Dimensions & Features:

    Wire Range: 22-16 AWG
    L: 22.0mm (0.86")
    F: 6.5mm (0.25")
    W: 4.8mm (0.18")
    T: 0.4mm (0.01")
    B: 11.0mm (0.43")
    D: 4.0mm (0.16")
    C: 1.7mm (0.07")
    Nema Tab: 0.32" X 0.18" (0.8mm X 4.7mm)
    Terminal Material: Brass
    Profile: Oval
    Insulation Material: Nylon
    Color: Red
    AMP Rating: 22-16 AMP
    Electrical Rating: 105oC - 600 Volts
    UL Recognized: Yes
    CE Certified: Yes
    RoHS Compliant: Yes

    Product Drawing:

    Cross References

    Cross Reference Parts:

    None

    Documents

    Click to view the product spec sheet:


    Videos

    Click to view our YouTube channel!
