LT810A - 8 AWG Compression Lug - #10 Stud Size, 1 Piece

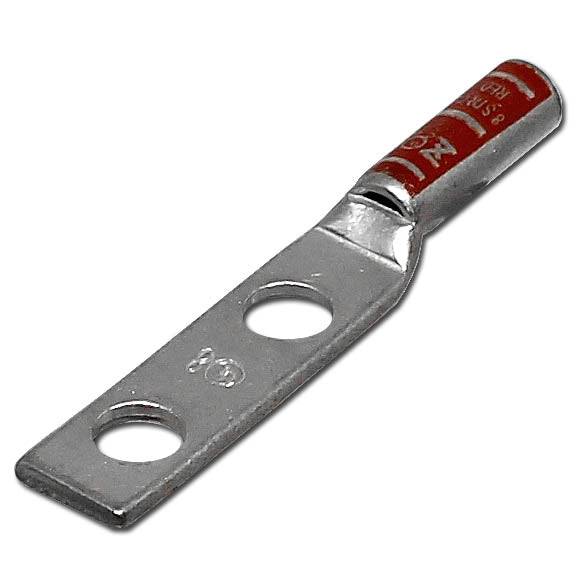

Product image 1

LT810A - 8 AWG Compression Lug - #10 Stud Size, 1 Piece

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 8 AWG
Stud Size: #10 Stud
Color: Red
L: 58mm (2.29")
L1: 34.3mm (1.35")
L2: 19.1mm (0.75")
D: 11.2mm (0.44")
D1: 7.11mm (0.28")
D2: 4.83mm (0.19")
B: 20.6mm (0.81")
E: 5.6mm (0.22")
F: 1.9mm (0.08")
Terminal Material: Tin-Plated Copper
Temperature Rating: 90°C
Voltage Rating: 35KV
Max Amp Rating: 50A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:

Videos

Check out our YouTube channel!

$0.32

Original: $1.05

-70%
LT810A - 8 AWG Compression Lug - #10 Stud Size, 1 Piece—

$1.05

$0.32
