16-14 AWG Non Insulated Locking Spade Terminals, #10 Stud, UL Approved, 100 Pieces - LSNBL2-5

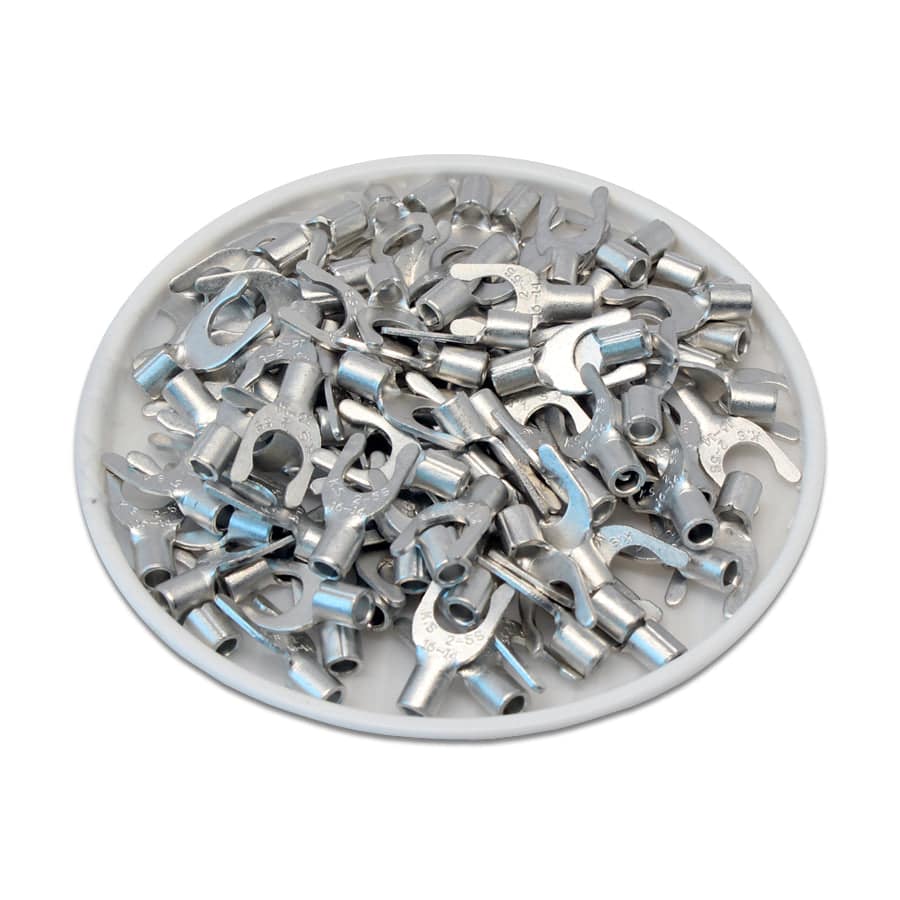

Product image 1

16-14 AWG Non Insulated Locking Spade Terminals, #10 Stud, UL Approved, 100 Pieces - LSNBL2-5

NON INSULATED SPADE TERMINALS

Non-insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength.


Dimensions & Features:

Wire Size: 16-14 AWG
Stud Size: #10
Seam: Brazed
Material: Copper
T: 0.8mm (0.03")
L: 16.0mm (0.63")
F: 6.5mm (0.26")
E: 4.8mm (0.19")
W: 9.5mm (0.37")
D: 4.1mm (0.26")
D1: 2.3mm (0.09")
D2: 5.3mm (0.21")
Maxed Electrical Current: 30AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:


Videos

Check out our YouTube channel!

$3.39

Original: $11.31

-70%
16-14 AWG Non Insulated Locking Spade Terminals, #10 Stud, UL Approved, 100 Pieces - LSNBL2-5—

$11.31

$3.39
