LB612 - 6 AWG Long Compression Lug - 1/2" Stud Size, 1 Piece

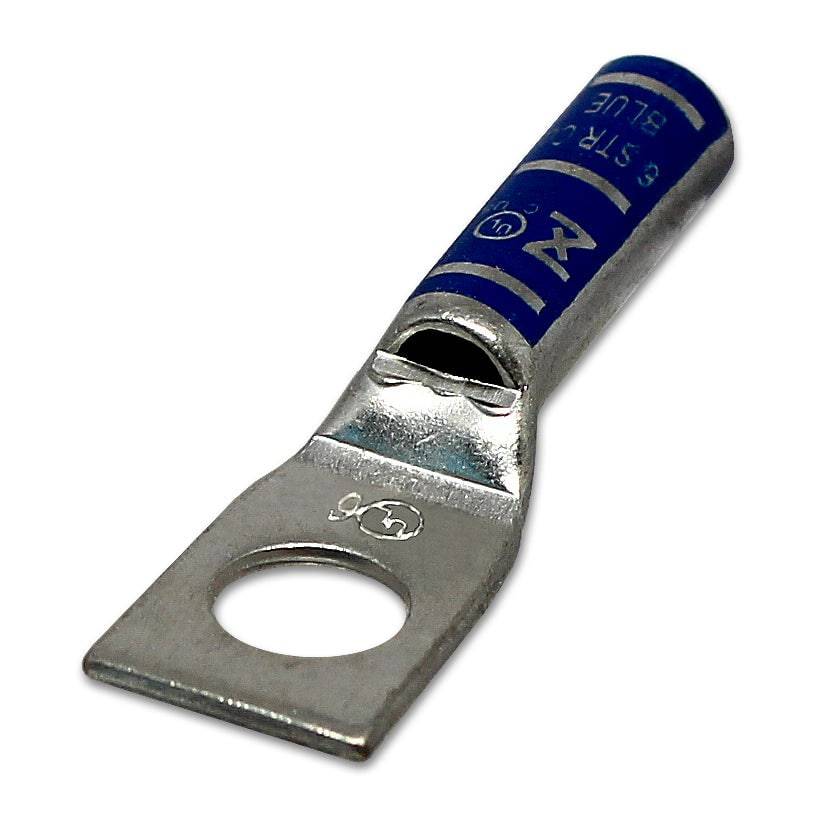

Product image 1

LB612 - 6 AWG Long Compression Lug - 1/2" Stud Size, 1 Piece

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 6 AWG
Stud Size: 1/2"
Color: Blue
L: 54.73mm (2.155")
L1: 28.70mm (1.130")
D: 17.78mm (0.70")
D1: 7.92mm (0.312")
D2: 5.82mm (0.232")
B: 22.8mm (0.90")
E: 13.08mm (0.515")
F: 1.244mm (0.049")
Terminal Material: Tin-Plated Copper
Temperature Rating: 90°C
Voltage Rating: 35 KV
Max Amp Rating: 65A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
Burndy Hubbell: YAZ6CTC12

None:

Documents

Click to view product spec sheet:
