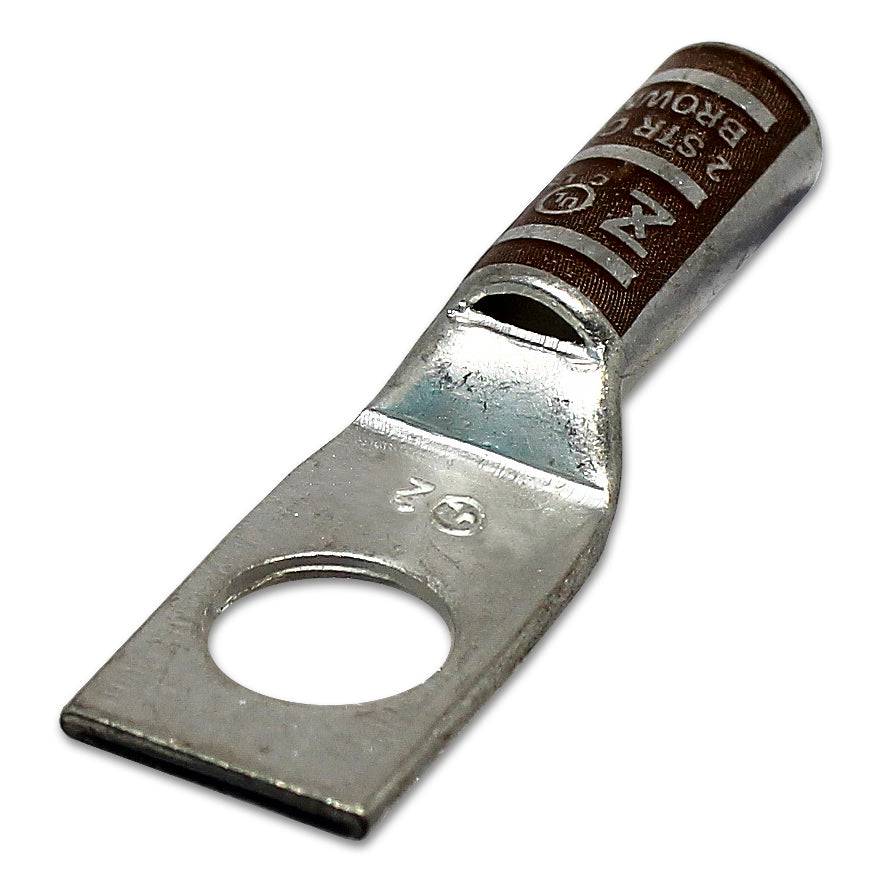

LB2516 - 2AWG Long Compression Lug - 5/16" Stud Size
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 2 AWG |
| Stud Size: | 5/16" |
| Color: | Brown |
| L: | 48.1mm (1.89") |
| L1: | 19.1mm (0.75") |
| D: | 15.8mm (0.62") |
| D1: | 10.7mm (0.42") |
| D2: | 8.5mm (0.33") |
| B: | 24.5mm (0.96") |
| E: | 8.7mm (0.34") |
| F: | 2.1mm (0.08") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35 KV |
| Max Amp Rating: | 170A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
Videos
Check out our YouTube channel!$0.38
Original: $1.25
-70%LB2516 - 2AWG Long Compression Lug - 5/16" Stud Size—
$1.25
$0.38Product Information
