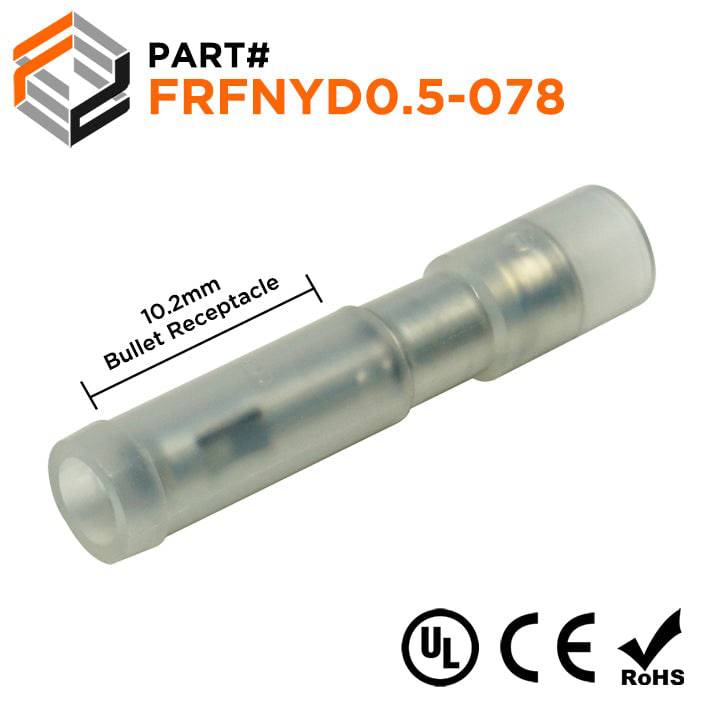

FRFNYD05-078 - 22 to 16 AWG Nylon Fully Insulated Female Bullet Connector, Double Crimp, 100 Pieces
FRFNYD05-078 - 22 to 16 AWG Nylon Fully Insulated Female Bullet Connector, Double Crimp, 100 Pieces
Tin plated brass bullet type insulated terminals with copper sleeve on terminal barrel. Male and female fit to form a fully insulated in-line splice. This helps prevent shorting or flash-over when disconnected with power on. Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Range: | 22-16 AWG |
| Color: | Clear |
| W: | 2.05mm (0.081") |
| F: | 10.0mm (0.394") |
| L: | 24.8mm (0.976") |
| B: | 11.0mm (0.433") |
| D: | 3.5mm (0.138") |
| T: | 0.3mm (0.012") |
| Terminal Material: | Brass |
| Insulation Material: | Nylon |
| Temperature Rating: | 105°C - 600 Volts |
| Max AMP Rating: | 7 AMP |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:
Videos
Click below to check out our YouTube channel!$9.36
Original: $31.20
-70%FRFNYD05-078 - 22 to 16 AWG Nylon Fully Insulated Female Bullet Connector, Double Crimp, 100 Pieces—
$31.20
$9.36Product Information
