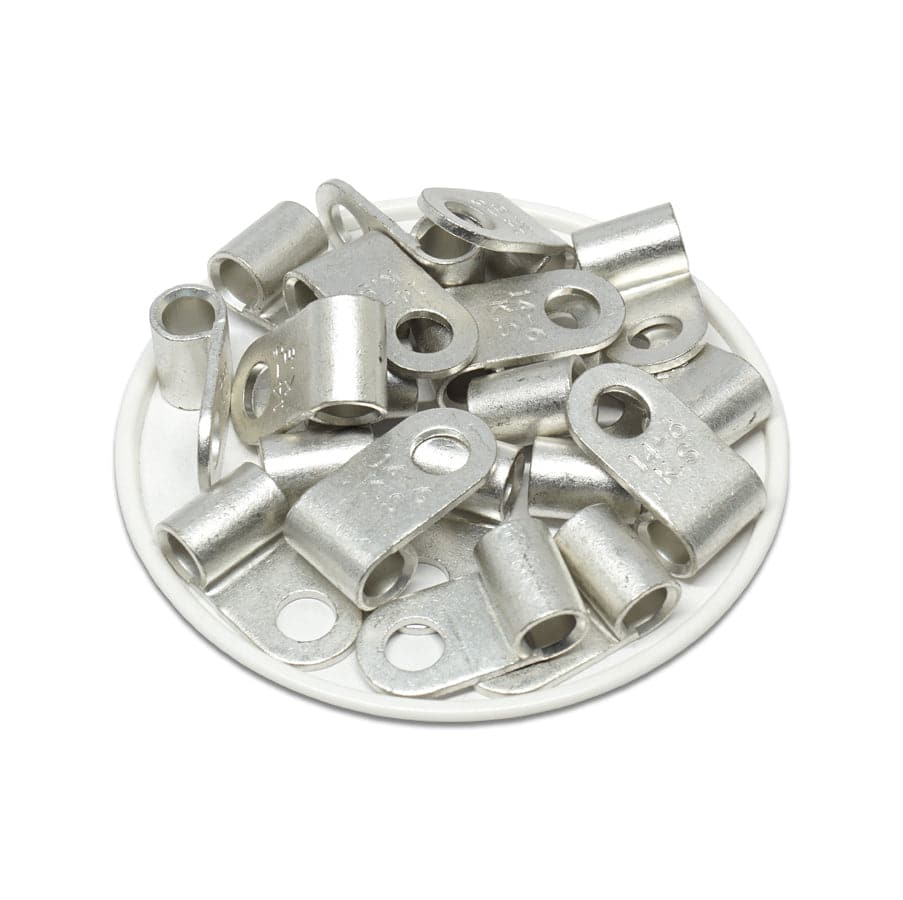

FGNB14-6 - Non Insulated Flag Terminal - Ring Tongue - 6AWG
Non-insulated flag terminals with ring tongue enable the user to create a 90° connection without bending the conductor..
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 6 AWG |
| Stud Size: | 1/4" |
| T: | 1.5mm (0.08") |
| L: | 24.9mm (0.96)") |
| F: | 9.6mm (0.37") |
| W: | 12.7mm (0.51") |
| D: | 9.0mm (0.35") |
| D1: | 5.8mm (0.22") |
| D2: | 6.4mm (0.25") |
| Material: | Tin-Plated Copper |
| Temperature Rating: | 105oC |
| Volt Rating: | 600 Volts |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$3.73
Original: $12.42
-70%FGNB14-6 - Non Insulated Flag Terminal - Ring Tongue - 6AWG—
$12.42
$3.73Product Information
