16 to 14 AWG Non Insulated Female Quick Disconnects, NEMA Tab: .250", 100 Pieces - FDN2-250

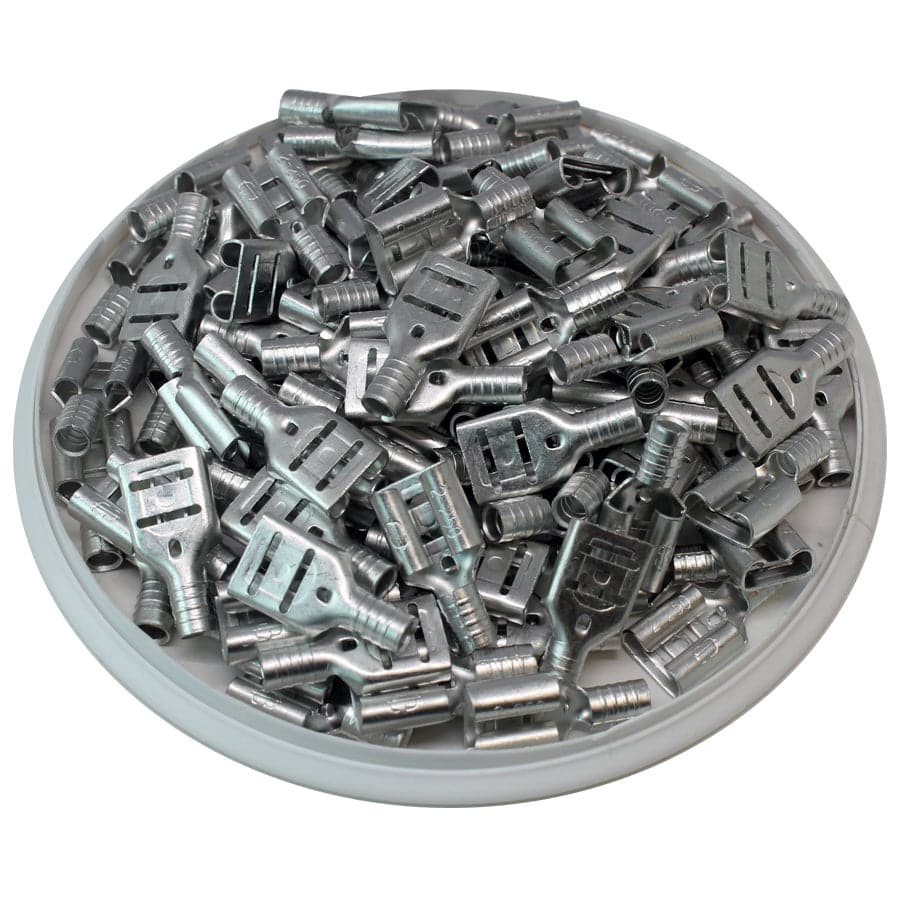

Product image 1

16 to 14 AWG Non Insulated Female Quick Disconnects, NEMA Tab: .250", 100 Pieces - FDN2-250

NON INSULATED QUICK DISCONNECTS

Non insulated quick disconnects create a splice when fitted together or can terminate a connection to a terminal block. Quick disconnects can be connected or disconnected without damage to the terminal or wire, without the use of tools.


Dimensions & Features:

Wire Size: 16-14 AWG
Nema Tab: 0.8 x 6.35mm (0.032 x 0.25")
Max Electrical Current: 15AMP
Terminal Material: Brass
Surface Material: Tin-Plated
L: 15.2mm (0.60")
F: 7.3mm (0.29")
E: 5.1mm (0.20")
W: 6.7mm (0.26")
D1: 2.5mm (0.10")
D: 3.4mm (0.13")
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None:

Documents

Click to view product spec sheet:

Videos

Check out our YouTube channel!

$1.89

Original: $6.30

-70%
16 to 14 AWG Non Insulated Female Quick Disconnects, NEMA Tab: .250", 100 Pieces - FDN2-250—

$6.30

$1.89

Product Information

Shipping & Returns

Description

NON INSULATED QUICK DISCONNECTS

Non insulated quick disconnects create a splice when fitted together or can terminate a connection to a terminal block. Quick disconnects can be connected or disconnected without damage to the terminal or wire, without the use of tools.


Dimensions & Features:

Wire Size: 16-14 AWG
Nema Tab: 0.8 x 6.35mm (0.032 x 0.25")
Max Electrical Current: 15AMP
Terminal Material: Brass
Surface Material: Tin-Plated
L: 15.2mm (0.60")
F: 7.3mm (0.29")
E: 5.1mm (0.20")
W: 6.7mm (0.26")
D1: 2.5mm (0.10")
D: 3.4mm (0.13")
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None:

Documents

Click to view product spec sheet:

Videos

Check out our YouTube channel!
