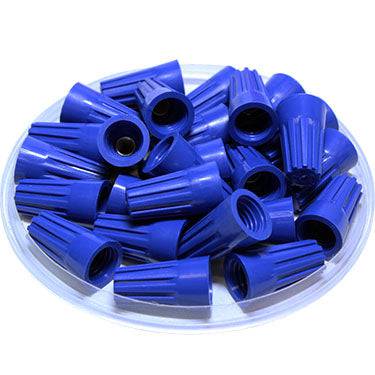

FD2WN - Twist-On Wire Cap Connector, 22-14 AWG, Blue, 100 Pieces
Twist-on wire connectors are a type of electrical connector used to fasten two or more low-voltage conductors. They're typically installed by hand by being twisted onto the stripped ends of wires. The wires are then drawn into the connector's metal insert and twisted and squeezed together inside. Twist-on connectors are not often used on wire gauges larger than 10 AWG because the solid wires are too stiff to be reliably connected with this method.
Dimensions & Features:
Wire Combinations:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-14 AWG |
| Color: | Blue |
| L: | 17.5mm (0.69") |
| D: | 10mm (0.39") |
| D1: |
7.4mm (0.29") |
| Strip Length (Stranded): | 3/8" (9.5mm) |
| Strip Length (Solid): | 3/8" (9.5mm) |
| Max Voltage: | 300V |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Wire Combinations:
| One 14 AWG | One 16 AWG (Stranded) |
| Two or Three 16 AWG |
One 18 AWG (Stranded) |
| Two to Four 18 AWG |
Three to Five 20 AWG |
| Two 22 AWG |

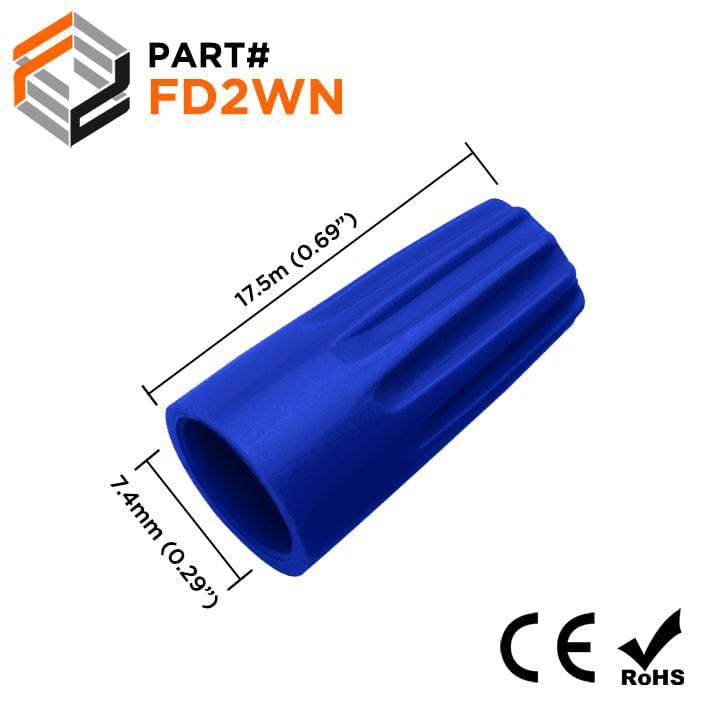

Product Drawing:
Cross References
Cross Reference Parts:None
