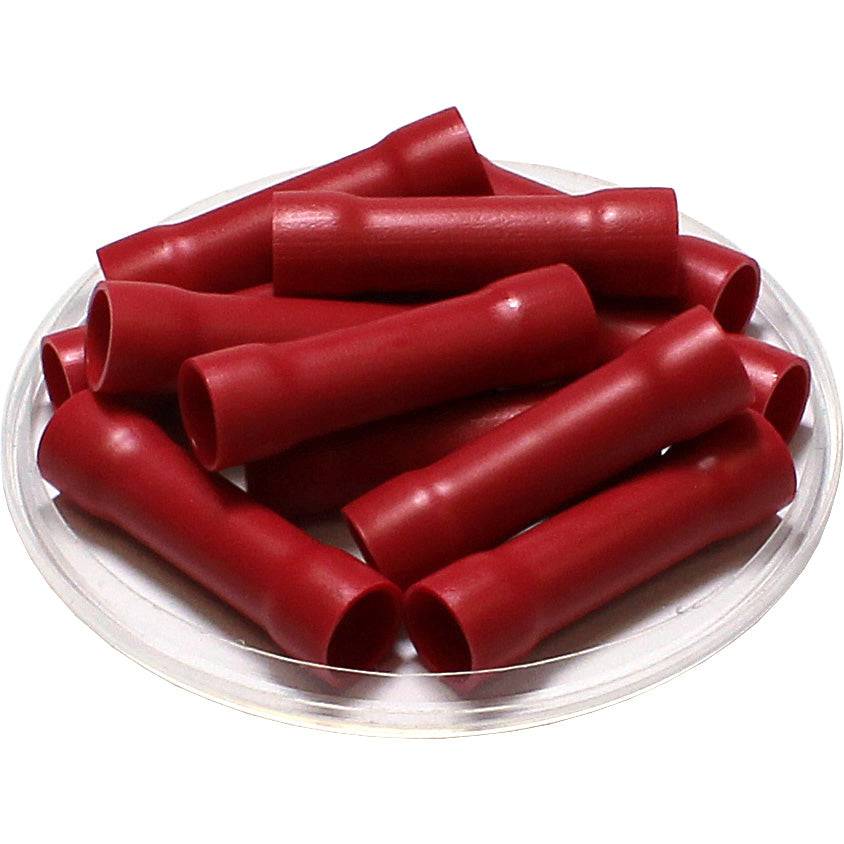

BVT8 - 8 Vinyl PVC Insulated Butt Splice Connectors, Flared, 25 Pieces
Insulated butt splice connectors insulate and protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 8 AWG |
| Color: | Red |
| L: | 35.5mm (1.34") |
| D: |
8.5mm (0.34") |
| D1: | 4.5mm (0.18") |
| Barrel: | Butted Seam |
| Configuration: | Flared |
| Material: | Tin Plated Copper |
| Insulation: | Vinyl |
| Max Electrical Rating: | 75°C - 600 Volts |
| Max Electrical Current: | 70 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$3.51
Original: $11.70
-70%BVT8 - 8 Vinyl PVC Insulated Butt Splice Connectors, Flared, 25 Pieces—
$11.70
$3.51Product Information
