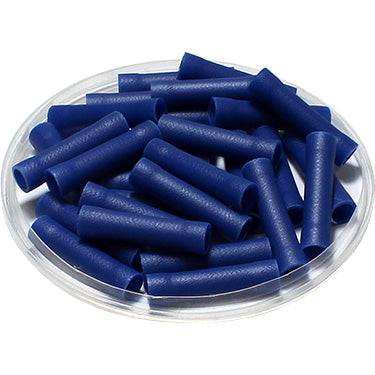

BVS2 - 16 to 14 AWG Vinyl PVC Insulated Butt Splice Connectors, Flared, 100 Pieces
Insulated butt splice connectors insulate and protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively.
Dimensions & Features:
Product Drawing:
None
Click to view product spec sheet:
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Color: | Blue |
| L: | 24.6mm (0.97") |
| D: | 4.5mm (0.18") |
| D1: | 2.5mm (0.10") |
| Material: | Brass |
| Max Electrical Rating: | 75°C - 300 Volts |
| Max Electrical Current: | 15A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:
Videos
Check out our YouTube channel!$1.98
Original: $6.60
-70%BVS2 - 16 to 14 AWG Vinyl PVC Insulated Butt Splice Connectors, Flared, 100 Pieces—
$6.60
$1.98Product Information
