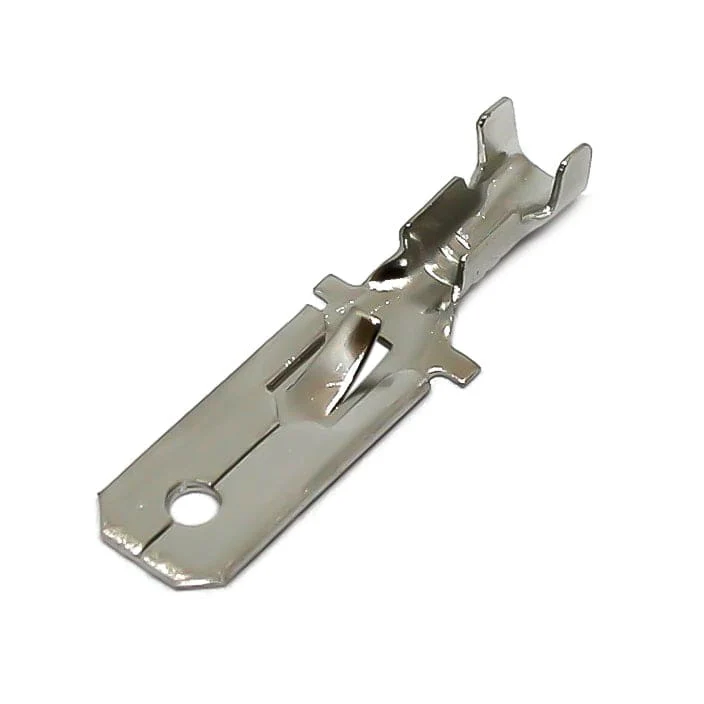

607LRM - Male Brass Open Barrel Connector - 16-14 AWG - 6.0x0.8mm Tab
Open barrel terminals (Faston B Type Terminals) have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.
Dimensions & Features:
Product Drawing:
None
Click to view product spec sheet:
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| W: | 6mm (0.24") |
| F: | 9.1mm (0.36") |
| L: | 25.3mm (1") |
| T: | 0.8mm (0.03") |
| Nema Tab: | 0.8 x 6.0mm (0.032 x 0.236") |
| Material: | Brass - Tinned |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:
Videos
Check out our YouTube channel!$12.96
